Mechanical Foam Portable Fire Extinguishers

Mechanical Foam Portable Fire Extinguishers – Store Pressure & Cartridge Operated

Mechanical Foam Fire Extinguishers are designed for effective protection against Class A and Class B fires, particularly fires involving flammable liquids such as petrol, diesel and other combustible materials. These extinguishers are suitable for use in petrol stations, restaurants, commercial premises, warehouses, workshops, industrial facilities and other high-risk areas.

Available in 9 LTR, 45 LTR and 150 LTR capacities, these foam extinguishers are offered in both Store Pressure and Cartridge Operated configurations, providing reliable and efficient fire suppression.

Ideal Applications

Petrol Stations & Fuel Stations

Restaurants & Commercial Kitchens

Warehouses & Storage Areas

Workshops & Industrial Units

Manufacturing Facilities

Offices & Commercial Buildings

Garages & Automobile Service Centres

Areas handling flammable liquids

Important Safety Note

Mechanical Foam Extinguishers are NOT suitable for fires involving energized electrical equipment. Do not use foam extinguishers on electrical fires. Always select the appropriate fire extinguisher based on the type of fire and site requirements.

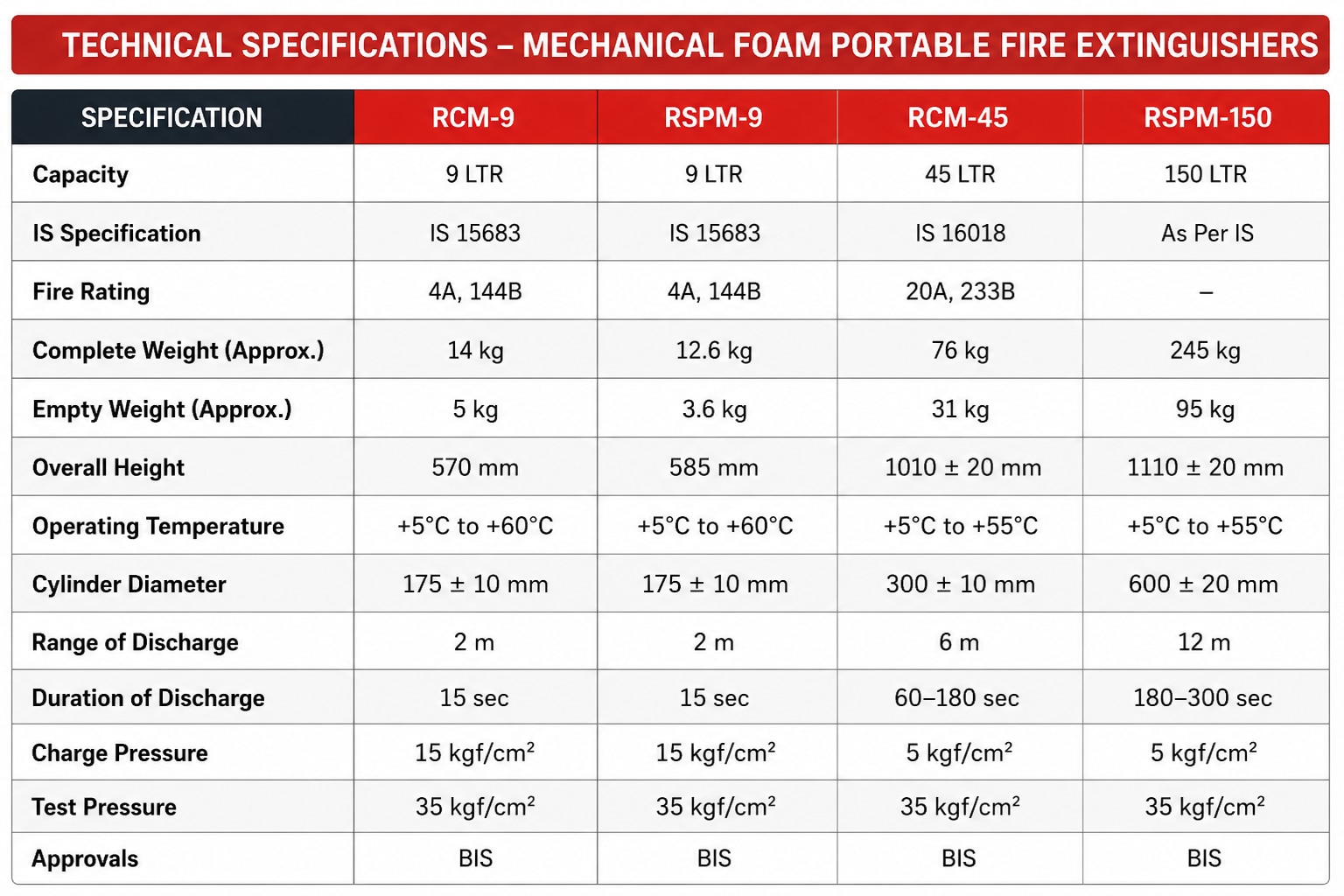

Technical Specifications-

Specification RCM-9 RSPM-9 RCM-45 RSPM-150

Capacity 9 LTR 9 LTR 45 LTR 150 LTR

IS Specification IS 15683 IS 15683 IS 16018 As Per IS

Fire Rating 4A, 144B 4A, 144B 20A, 233B —

Complete Weight (Approx.) 14 kg 12.6 kg 76 kg 245 kg

Empty Weight (Approx.) 5 kg 3.6 kg 31 kg 95 kg

Overall Height 570 mm 585 mm 1010 ± 20 mm 1110 ± 20 mm

Operating Temperature +5°C to +60°C +5°C to +60°C +5°C to +55°C +5°C to +55°C

Cylinder Diameter 175 ± 10 mm 175 ± 10 mm 300 ± 10 mm 600 ± 20 mm

Range of Discharge 2 m 2 m 6 m 12 m

Duration of Discharge 15 sec 15 sec 60–180 sec 180–300 sec

Charge Pressure 15 kgf/cm² 15 kgf/cm² 5 kgf/cm² 5 kgf/cm²

Test Pressure 35 kgf/cm² 35 kgf/cm² 35 kgf/cm² 35 kgf/cm²

Approvals BIS BIS BIS BIS

Key Features-

Available in multiple capacities for different fire-risk environments

Suitable for Class A and Class B fire applications where specified

Store Pressure and Cartridge Operated options

Robust cylinder construction for demanding environments

Effective foam discharge for combustible and flammable liquid fires

Long discharge duration in higher-capacity models

BIS-approved models as specified

Suitable for commercial, industrial and institutional fire-safety requirements

Mechanical Foam Fire Extinguisher Supplier

Mechanical Foam Portable Fire Extinguishers are an important part of a comprehensive fire safety and emergency response system. Selecting the correct capacity, fire rating and extinguisher type is essential for effective fire protection.

For petrol stations, restaurants, warehouses, factories, workshops and commercial establishments, choose the appropriate Mechanical Foam Fire Extinguisher according to the site's fire-risk assessment and applicable fire-safety requirements.
